VENEWER

Core Plus

800-LED Red Light Therapy Panel for Wider Lower-Torso and Leg Coverage
$2,499.00
Ask a question

More Room for a Natural Stance

Nearly Twice the Width of Core, more freedom to stand or sit naturally.

Six Presets Built for People Who Train

Choose a preset and begin with one tap—before training, after training, or as part of your regular recovery routine.

7 Wavelengths with Independent 1064 nm Control

630 · 660 · 670 · 810 · 830 · 850 · 1064 nm

Wheeled Base Included

Easy to move between rooms and training spaces.

Free Worldwide Shipping | 60-Day Trial | 5-Year Panel Warranty

No import duties on U.S. orders | No restocking fee
Guarantee Safe Checkout:

Specifications

What's Included

Quality & Compliance

VENEWER Red Light Therapy Panels – Specifications Comparison

Specification Spot Beam Core Core Plus Flow Panel
Model SB100 C400 CP800 FP1200
Coverage Targeted areas Middle back to ankles Wider coverage
from Middle back to ankles		 Full body
LED Count 100 400 800 1,200
LED Wavelength Distribution 630 nm: 14%
660 nm: 20%
670 nm: 10%
810 nm: 20%
830 nm: 10%
850 nm: 16%
1064 nm: 10%		 630 nm: 14%
660 nm: 20%
670 nm: 10%
810 nm: 20%
830 nm: 10%
850 nm: 16%
1064 nm: 10%		 630 nm: 14%
660 nm: 20%
670 nm: 10%
810 nm: 20%
830 nm: 10%
850 nm: 16%
1064 nm: 10%		 630 nm: 14%
660 nm: 20%
670 nm: 10%
810 nm: 20%
830 nm: 10%
850 nm: 16%
1064 nm: 10%
Independent Light Channels RED (630 / 660 / 670 nm)
NIR (810 / 830 / 850 nm)
1064 nm
Independently selectable and adjustable		 RED (630 / 660 / 670 nm)
NIR (810 / 830 / 850 nm)
1064 nm
Independently selectable and adjustable		 RED (630 / 660 / 670 nm)
NIR (810 / 830 / 850 nm)
1064 nm
Independently selectable and adjustable		 RED (630 / 660 / 670 nm)
NIR (810 / 830 / 850 nm)
1064 nm
Independently selectable and adjustable
Beam Angle 30° Mixed 30° / 60° Mixed 30° / 60° Mixed 30° / 60°
Irradiance* 184 mW/cm² @ 6 in
165 mW/cm² @ 12 in
158 mW/cm² @ 18 in
137 mW/cm² @ 24 in		 190 mW/cm² @ 6 in
171 mW/cm² @ 12 in
155 mW/cm² @ 18 in
138 mW/cm² @ 24 in		 204 mW/cm² @ 6 in
191 mW/cm² @ 12 in
171 mW/cm² @ 18 in
140 mW/cm² @ 24 in		 202 mW/cm² @ 6 in
174 mW/cm² @ 12 in
153 mW/cm² @ 18 in
134 mW/cm² @ 24 in
Estimated Irradiance by a Third-Party Laboratory* 82.8 mW/cm² @ 6 in
74.3 mW/cm² @ 12 in
71.1 mW/cm² @ 18 in
61.7 mW/cm² @ 24 in		 85.5 mW/cm² @ 6 in
77.0 mW/cm² @ 12 in
69.8 mW/cm² @ 18 in
62.1 mW/cm² @ 24 in		 91.8 mW/cm² @ 6 in
86.0 mW/cm² @ 12 in
77.0 mW/cm² @ 18 in
63.0 mW/cm² @ 24 in		 90.9 mW/cm² @ 6 in
78.3 mW/cm² @ 12 in
68.9 mW/cm² @ 18 in
60.3 mW/cm² @ 24 in
Adjustable Settings Time: 1–30 min
Intensity: 0–100%
Pulse: OFF or 0.5–10,000 Hz		 Time: 1–30 min
Intensity: 0–100%
Pulse: OFF or 0.5–10,000 Hz		 Time: 1–30 min
Intensity: 0–100%
Pulse: OFF or 0.5–10,000 Hz		 Time: 1–30 min
Intensity: 0–100%
Pulse: OFF or 0.5–10,000 Hz
Custom Modes Save up to 20 Custom Modes Save up to 20 Custom Modes Save up to 20 Custom Modes Save up to 20 Custom Modes
Preset Modes Prime
Recover
DeepCare
Unwind
Flow
Glow		 Prime
Recover
DeepCare
Unwind
Flow
Glow		 Prime
Recover
DeepCare
Unwind
Flow
Glow		 Prime
Recover
DeepCare
Unwind
Flow
Glow
Power Consumption 136 W 537 W 1,078 W 1,624 W
Voltage 100–240 V AC 100–240 V AC 100–240 V AC 100–240 V AC
EMF 0.0 μT @ 3 in 0.0 μT @ 3 in 0.0 μT @ 3 in 0.0 μT @ 3 in
Product Dimensions
(H × W × D)		 12.4 × 10.8 × 2.4 in
315 × 274 × 60 mm		 46.5 × 10.7 × 2.4 in
1180 × 271 × 60 mm		 46.5 × 20.2 × 2.8 in
1180 × 513 × 70 mm		 69.1 × 20.2 × 2.8 in
1754 × 513 × 70 mm
Net Weight 7.7 lb
3.5 kg		 24.3 lb
11 kg		 45.4 lb
20.6 kg		 67.9 lb
30.8 kg
Included Stand Fold-out rear support Wheeled base Wheeled base Motorized mobile stand
Optional Stand - Compact motorized mobile stand Motorized mobile stand -
LED Lifespan Up to 100,000 hours Up to 100,000 hours Up to 100,000 hours Up to 100,000 hours
Warranty 5 Years 5 Years 5 Years 5 Years
CTA Explore Spot Beam Explore Core Explore Core Plus Explore Flow Panel
*Measured at the center of the illuminated area using a Solar Power Meter, with all light channels set to 100% intensity.
*Estimated by applying a 0.45 correction factor to the solar power meter readings. Third-party laboratory spectrometer testing is in progress, and these values will be updated once verified.

Wider Coverage. More Freedom in Your Position.

At 46.5 inches (118 cm) tall and 20.2 inches (51.3 cm) wide, CORE PLUS maintains the vertical reach of CORE while providing nearly twice the width, with more room for a natural stance and greater flexibility for seated or reclined sessions.

Built Around the Areas Training Loads Most

The wider format provides broader coverage across the lower torso, hips, glutes and legs—areas repeatedly loaded through running, cycling, lower-body strength training, and court, racquet and field sports.

Running & Hiking
Commonly load the hips, glutes, quadriceps, hamstrings and calves.

Cycling
Commonly loads the glutes, hip flexors, quadriceps, hamstrings and calves.

Lower-Body Strength Training
Squats, lunges, deadlifts, hip thrusts and step-ups commonly load the hips, glutes, quadriceps and hamstrings, with the lower back contributing to stability in many movements.

Court, Racquet & Field Sports
Basketball, tennis, pickleball, soccer and football commonly load the hips, glutes, quadriceps, hamstrings and calves through running, jumping, acceleration, deceleration and changes of direction.

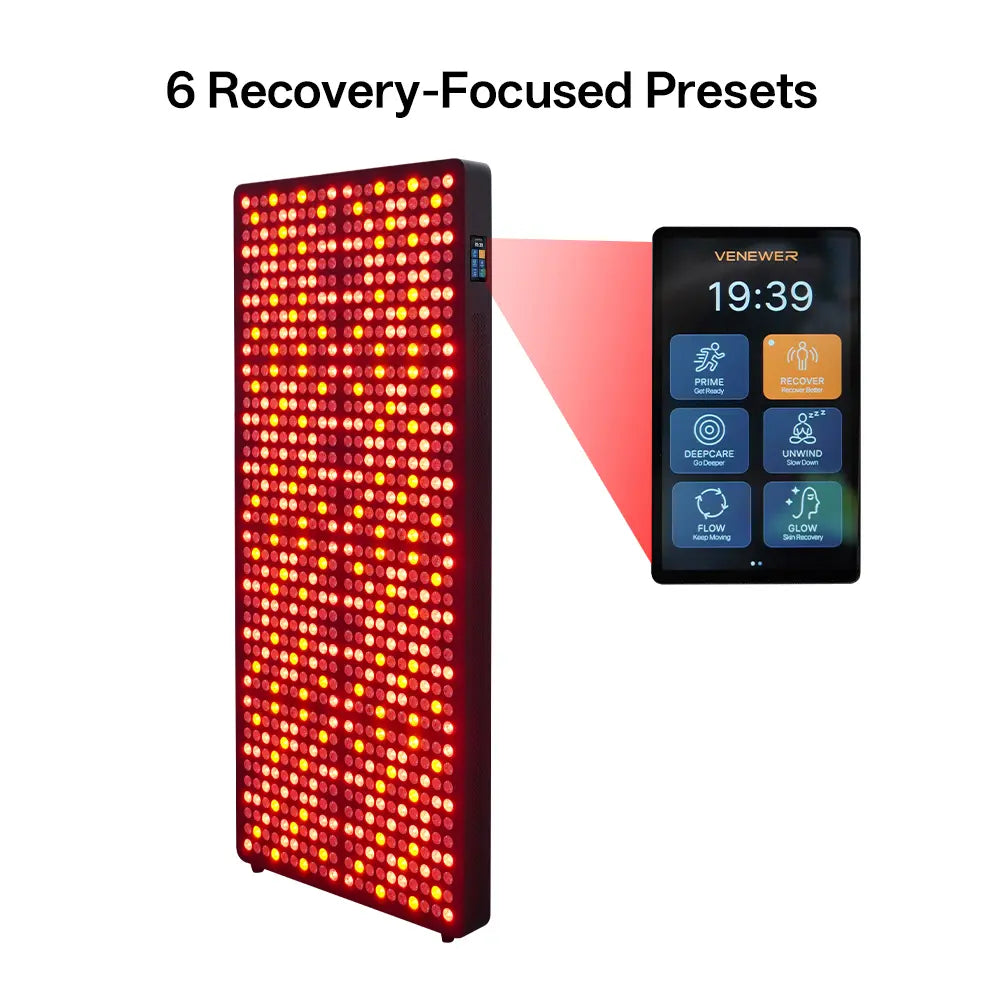

Six Presets Built Around Training and Recovery

 Six presets appear on the home screen at startup. Each combines predefined intensity levels across the three light channels—RED, NIR and 1064 nm—with a set session time, giving you a clear starting point for workout preparation, post-training recovery, deeper-care sessions, relaxation, circulation and everyday movement, or skin-focused care.

 The configurations were developed with reference to photobiomodulation literature, internal product testing, and feedback from fitness professionals and experienced red light users. Choose a preset and start your session with one tap—without adjusting every setting yourself.

Want More Control?

Select any combination of RED, NIR and 1064 nm. Adjust the intensity and pulse frequency of each channel independently, set the session time, then save and rename up to 20 configurations for future sessions.

Seven Research-Informed Wavelengths. A Dedicated 1064 nm Channel.

CORE PLUS combines 630, 660 and 670 nm red light; 810, 830 and 850 nm near-infrared light; and a dedicated 1064 nm channel.

These wavelengths were selected with reference to spectral regions widely studied in photobiomodulation. Because different wavelengths interact with tissue differently, combining multiple red and near-infrared wavelengths provides a broader, research-informed spectrum designed around VENEWER’s intended wellness and recovery uses.

The dedicated 1064 nm channel further extends the near-infrared range and can be controlled independently of the RED and NIR channels.

A Calmer Presence in the Space

CORE PLUS organizes its 800 LEDs into eight 100-LED sections arranged in two columns and four rows. Subtle, narrow divisions break up the appearance of one uninterrupted field of densely packed lenses, creating a cleaner visual rhythm and making the panel feel less visually imposing when not in use.

This quieter visual structure helps CORE PLUS sit more naturally within a home, studio or shared training space.

-------------

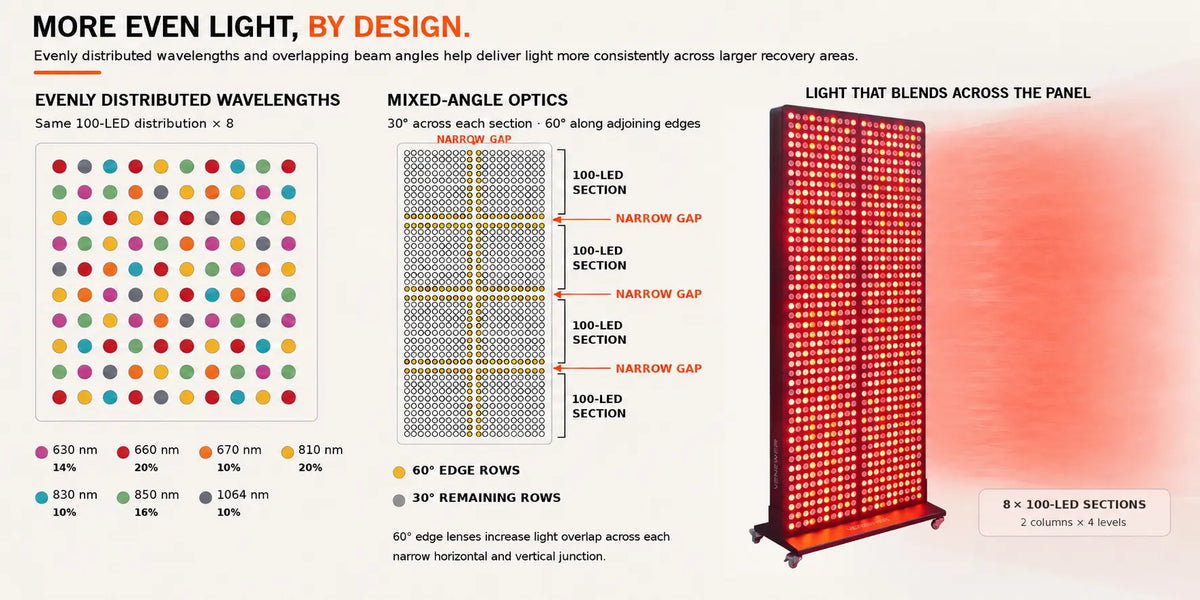

Designed for More Even Light Distribution

Evenly distributed wavelengths and overlapping beam angles help deliver light more consistently across larger recovery areas.

Each 100-LED section uses the same carefully arranged seven-wavelength pattern, with all seven wavelengths distributed throughout the section rather than grouped into separate zones.

At each of the narrow junctions, the adjoining edge rows or columns use 60° lenses, while the remaining LEDs use 30° lenses. The wider edge angles increase light overlap across the gaps, helping reduce lower-output transitions and deliver light more consistently across the wider illuminated area.

Setup Fits Your Routine

 Wheeled Base — Included
Move CORE PLUS between rooms and recovery spaces more conveniently.

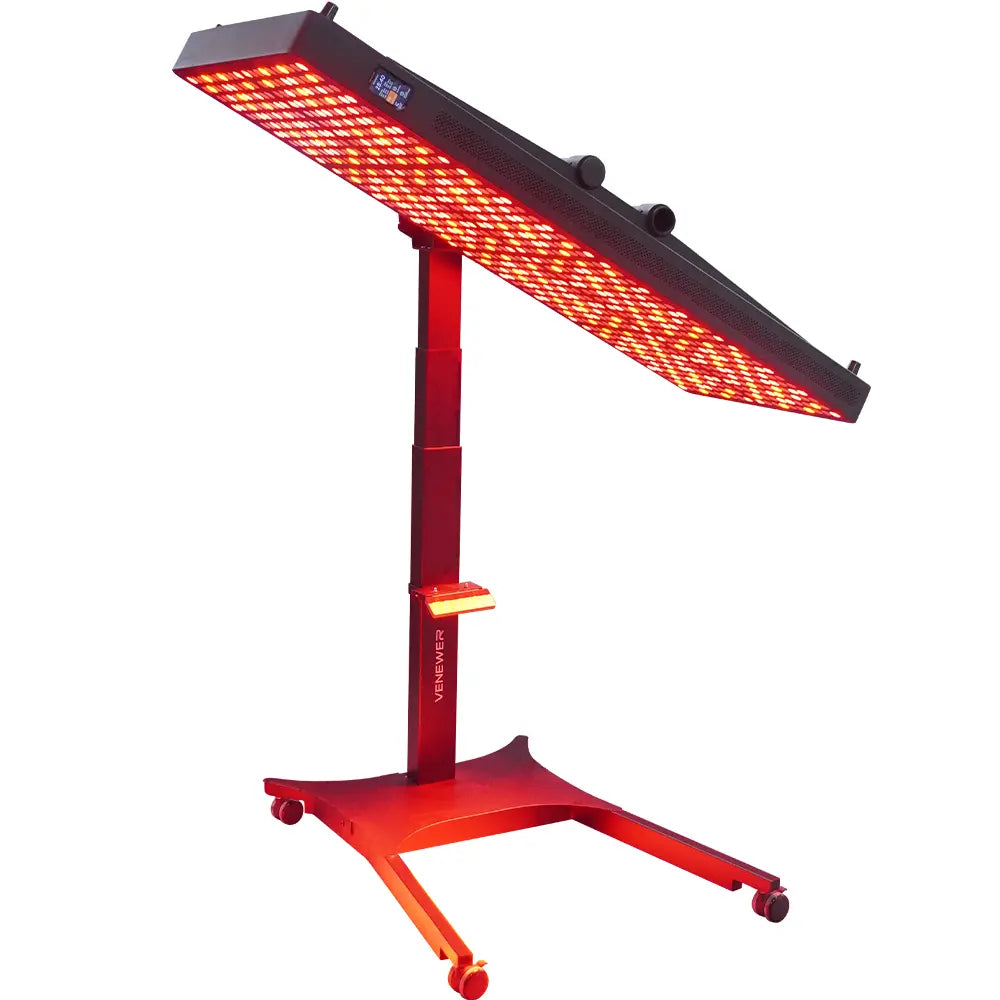

Motorized Stand — Optional
Adjust the panel height and angle for standing, seated, reclined or lying-down sessions.

-------------

CORE or CORE PLUS?

Choose CORE
For longer vertical coverage in a narrower footprint.

Choose CORE PLUS
For the same CORE height with nearly twice the width, providing more room for a natural stance and broader seated coverage.
